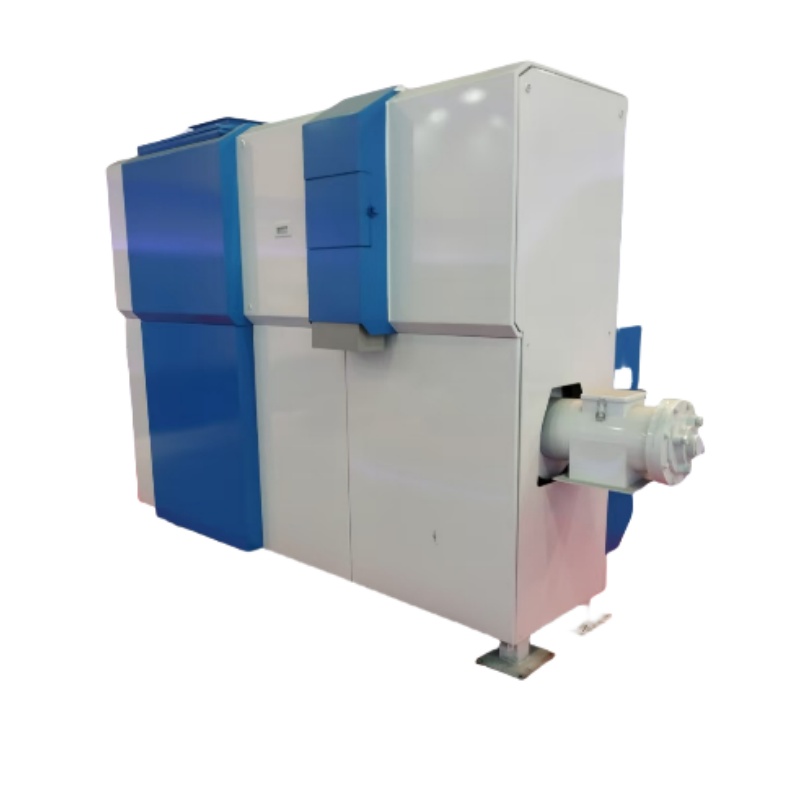

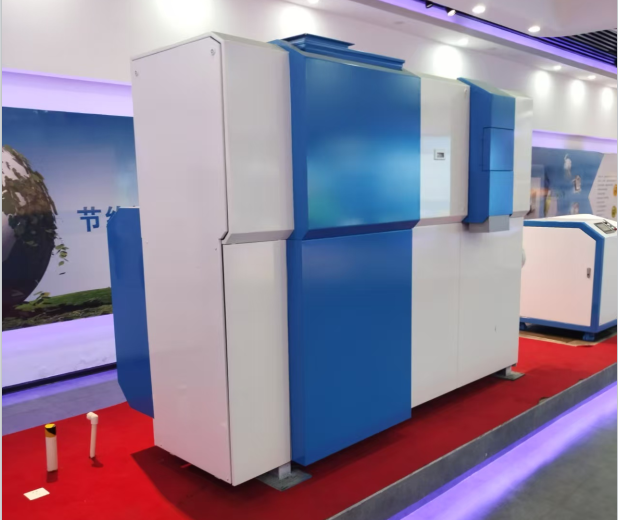

Automatic Bag Breaking Sorting Equipment TJZJ

Automatic Bag Breaking Sorting Equipment TJZJ

Model: TJZJ

Appliciation: Hotels, Restaurant,Cafeteria,Commercial complex

OEM/ODM: Accepted

Material: 304 stainless steel

Processing Capacity : 1000-3000(kg/h)

Inquiry Now

Garbage from the sending tank flows directly into the Automatic Bag Breaking Sorting Equipment through a spiral conveyor or lift barrel. This system effectively processes unclassified or partially sorted kitchen waste, ensuring smooth and efficient sorting.

How the Sorting Process Works:

  1. Garbage Input: Kitchen waste enters the system via a spiral conveyor or lift barrel for further processing.
  2. Bag Breaking: The equipment breaks garbage bags automatically, exposing their contents for separation.
  3. Material Separation: High-speed rotation separates non-degradable inorganic materials from organic waste.
  4. Inorganic Waste Removal: Non-degradable materials slide out through a chute and move to the trash bin.
  5. Organic Waste Crushing: The system crushes organic waste into smaller pieces, reducing them to sizes below 40mm (or 25mm for kitchen waste).
  6. Final Discharge: Crushed organic material passes through a sieve and travels along a spiral conveyor to the discharge port.

The Automatic Bag Breaking Sorting Equipment provides a seamless, reliable, and eco-friendly solution for managing kitchen waste. Its advanced design minimizes manual effort, improves efficiency, and ensures precise separation of waste materials.



Specification and Parameter

1 model:TJZJseries 6 Water out of water: gravity self -current, no special corrosive liquid


2

Medium: kitchen/kitchen waste/fruit and vegetable garbage 7 Ambient temperature:≥0~40℃


3

Rated processing volume:1500-3000kg/h(Kitchen waste);
3000-6000kg/h(Kitchen)


8

Installation requirements: flat, ≥500mm space, more than 1.5m from fire source
4 Material: main body 304, bracket carbon steel anti -corrosion corrosion 9 Federation particle size: P≤25mm (kitchen), φ ≤40mm (kitchen waste)
5 Body weight:2000-3200kg 10 Total installed power:15.5-26kW
